Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon

Product Categories
Guangzhou Juchuan Machinery Co., Ltd.
Contact Now

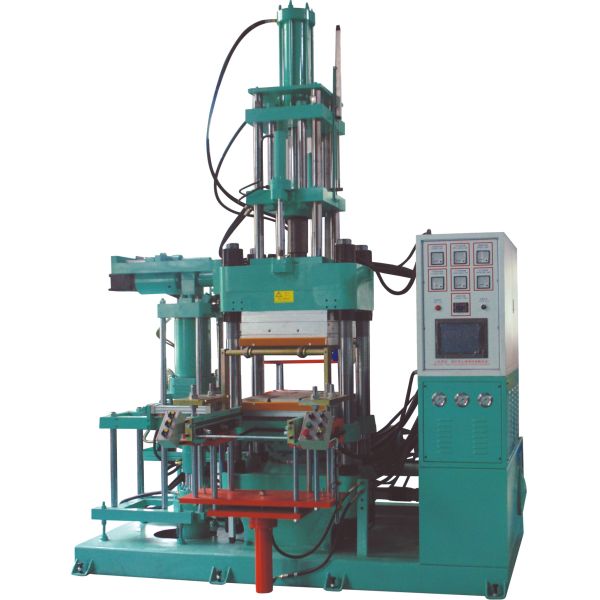

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon

Place of Origin : Guangdong, China

Model Number : JC-VI-AO

Brand Name : JuChuan

Certification : ISO9001-2015

Packaging Details : container

Supply Ability : 1set per 30 days

Price : USD32200 set

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 15 - 20 working days

Plastic Processed : PET

Condition : New

Style : VERTICAL

Injection Rate (g/s) : 18

Machine Type : Hydraulic

Injection Weight (g) : 1800

Screw diameter (mm) : 250

Distance between Tie Bars : 500-600

Weight (KG) : 7500

Type : Injection molding machine

Power (kW) : 30.3

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant

Plastic Type : Thermoplastic

Automatic : Yes

After-sales Service Provided : Free spare parts, Online support, Engineers available to service machinery overseas

Opening Stroke : 280-1500 Mm

Clamping Force (kN) : 200

Clamp Force(Ton) : 50~1000

Injection Volume(cc) : 500~10000

Injection Pressure(kgf/xm2) : 1800 kgf/cm2

Platen Size(mm) : 300*300~1200*1200

Plunge Stroke(mm) : 300~500

Heater Capacity(kw) : 8.4~42

Gross Weight(Ton) : 5.5~21

Port : Guangzhou

clamp force : 50-1000

injection volume : 500-4000

injection pressure : 1800

plunger stroke : 300-500

opening mold : 2RT3RT4RT

Gross weight : 5.5-10ton

Contact Now

Automatic feeding material silicone injection moulding machine to produce silicone cup

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon

Finished product:

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon

Technical parameter

Technical Parameters:

Model Unit 200VI-AO 300VI-AO 400VI-AO 600VI-AO
Clamping Force Ton 200 300 400 600
Injection Capacity cc 2000 3000 4000 6000
Injection pressure kgf/cm² 1800 1800 1800 1800
Operation table size mm 550*560 700*700 700*700 850*850
Min. Mold Thickness mm 100 100 100 100
Plunger stroke mm 400 400 400 500
Distance of Thermo-plate mm 500~600 500~600 500~600 600~700
Distance of Tie bar mm 640*310 820*395 820*395 970*500
Die sinking type 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector
Max. Operating Pressure Mpa 20 20 20 20
Motor Power hp 15 15 15 20
Electric Heating Power Kw 15.3 24 24 29.75
Total Power Kw 30.3 39 39 48.75
Gross weight Ton 7.5 9 10 14.2
Dimension mm L2600*W2000*H4000 L2750*W2265*H4200 L2750*W2265*H4200 L3200*W2500*H4350

Mahcine Applications :

  • "all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.

  • Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.

  • Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.

  • Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications

Our Services

Our Services Conception:

  • Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.

  • we are committed to providing full after-market service to all of our customers by online instructions or video reference.

  • Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.

  • After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)

Related Products

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon
Packaging & Shipping

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon

Company Information

Guangzhou JuChuan Machinery Co.,Ltd, our factory has 26 years experience for the silicone rubber injection molding machines.

We sold machines to Thailand, Malaysia, Vietnam, Israel, Russia, Germany, Afghanistan, and Sudan before.

Our main products:

1.Silicone rubber injection molding machine,

2.Vertical hydraulic rubber injection machine,

3.Horizontal silicone rubber injection machine,

4.Car brake pads hot press machine,

5.Vacuum compression machine

6.Silicone rubber hot press machine.
