Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring

Name: Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring
Brand: Juchuan
Price: 24000 USD

Wholesale Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring from china suppliers

Brand Name : Juchuan

Certification : ISO9001-2015

Place of Origin : China

MOQ : 1set

Price : USD 24000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets per Month

Delivery Time : 60days

Model Number : JC-VF

Packaging Details : container

Clamp Force(Ton) : 100 - 800

Plunger Stroke(mm) : 200 - 350

Mold Opening Type : 2RT-3RT-4RT-Track

Max. Operating Pressure(MPa) : 2RT-3RT-4RT

Motor Power(KW) : 5.5*2-11

Heating Power(KW) : 7.2*2 - 90

Contact Now

Detailed Product Description

Clamp Force:	300 Ton	Upper Plate Size:	680*680mm
Machine Dimension:	336029702850mm	Motor Capacity:	7.5KW*2
Total Capacity:	69KW	Dimension:	L3360W2970H2850mm
Vacuum Pump Power:	3KW *2
High Light:	rubber compression moulding machine , rubber compression molding machine

Syringe Production Medical Syringe Rubber Flange Gasket Making Press Machine

4RT Features:
The 4RT surpasses traditional top opening mold that can be used for taking out the final product when there are triple or four mold plates with the design of opening mold, pushing out the mold in between, and rising thimble to eject the final production.

4RT Machine motions flow:

Unload the mold
M1 goes up to open the mold
M2 goes up and separates from the mold
M3 follow the K goes backward
M2 goes down
L goes up take out the finished product, clean and place new material for re-start.
L goes down; M2 goes up, M3 follow the bottom plate goes forward.
M2&M1 go down.
Mold in, main ram goes up and molding than main ram goes down and mold-out when completed the process.

Main Feature:

1. Every work station can be used independently with respectively hydraulic and power motor.

2. Special design movement platen with consistent 3. clamping force for better molded part quality.

3. High vacuuming/degassing speed.

4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

5. Adaptable with different mold model.

6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.

300Ton parameter:

Model	Unit	300VF
Clamping Force	Ton	300
Upper Platen Size	mm	680*680
Lower Platen Size	mm	700*800
Plunger stroke	mm	300
Distance of Thermo-plate	mm	300
Distance of Tie bar	mm	785*380
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20
Motor Power	hp	10*2
Electric Heating Power	Kw	24*2
Vacuum Pump Power	Kw	3*2
Total Power	Kw	69
Gross weight	Ton	15.45
Dimension	mm	L3360W2970H2850

The other capacity:

Model	Unit	100VF	200VF	250VF	400VF	500VF
Clamping Force	Ton	100	200	250	400	500
Upper Platen Size	mm	380*400	510*510	600*600	800*800	950*950
Lower Platen Size	mm	400*460	550*560	650*600	850*850	1000*1000
Plunger stroke	mm	200	250	250	350	350
Distance of Thermo - plate	mm	200	250	250	350	350
Distance of Tie bar	mm	490*230	640*310	745*310	940*450	1105*475
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20	20
Motor Power	hp	7.5*2	10*2	10*2	15*2	15
Electric Heating Power	Kw	7.2*2	13.5*2	15.3*2	26.4*2	36
Vacuum Pump Power	Kw	3	3	3*2	3*2	4
Total Power	Kw	28.4	45	51.6	84.8	49
Gross weight	Ton	5	7.8	11	18	14.5
Dimension	mm	250021502080	293025002350	319029302495	365030502900	146036003150

Product Show:

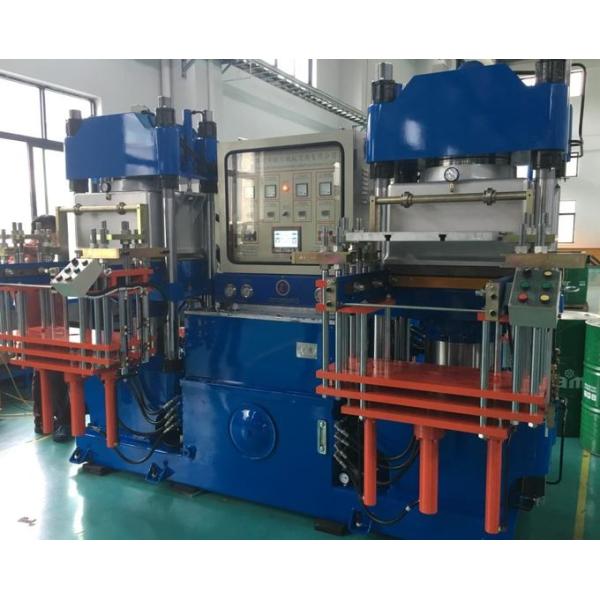

Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring

Product show

what product our machine can make?

Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring
