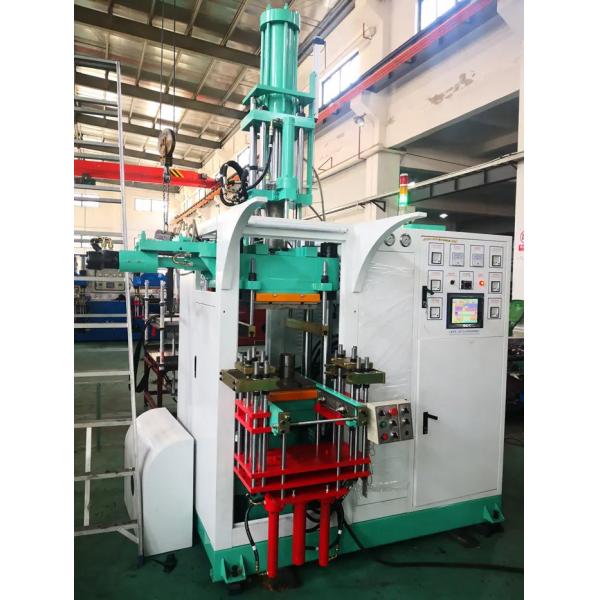

Rubber Injection Molding Machine for making O ring Seals

Name: Rubber Injection Molding Machine for making O ring Seals
Brand: JuChuan
Price: 35000.00 USD

Wholesale Rubber Injection Molding Machine for making O ring Seals from china suppliers

Brand Name : JuChuan

Model Number : JC-VI-AO

Certification : CE ISO9001:2015

Place of Origin : Guangdong, China

MOQ : 1set

Price : $35000.00 - $45000/sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Unit/Units per Month

Delivery Time : 50 working days

Packaging Details : Fixed with hard straps

Condition : New

Style : VERTICAL

Clamping Force : 50~1000Ton

Type : Injection molding machine

After-sales Service Provided : Engineers available to service machinery overseas

Power : 16.90~64.5Kw

Injection Rate : Adjustable

Automatic : Yes

Injection Weight : 500~10000cc

Clamp Force(Ton) : 50~1000

Injection Volume(cc) : 500~10000

Injection Pressure(kgf/xm2) : 1800

Platen Size(mm) : 300*300~1200*1200

Plunge Stroke(mm) : 300~500

Heater Capacity(kw) : 8.4~42

Gross Weight(Ton) : 5.5~21

Port : Guangzhou

clamp force : 50-1000

injection volume : 500-4000

injection pressure : 1800

plunger stroke : 300-500

opening mold : 2RT3RT4RT

Gross weight : 5.5-10ton

Contact Now

Rubber Injection Molding Machine for making O ring Seals

VI-AO Series Vertical "all-in-out" Silicone/Ssynthetic Rubber Injeciton Molding Machine

Key Features:

1. Versatile Application: The machine is well-suited for automotive and electronic rubber parts, high/cold temp precision rubber parts, with a special focus on NBR products.

2. All-in-Out Structure: Featuring a sprueless injection process, the machine ensures minimal material loss and allows for precise control of the injecting material temperature.

3. High Precision Molding: The machine excels in producing high precision molded parts, achieving 5-10 times better accuracy compared to conventional injection machines. It can achieve a measuring precision of ±0.1 g for a 1000cc injection volume.

4. Anti-Collision Molding System: A patented system is in place to prevent mold damage resulting from misalignment, ensuring smooth and reliable operation.

5. Energy-Efficient: The machine is equipped with a Servo-Controlled system, which can lead to energy savings of up to 40% during operation.

6. Proportional Backpressure Control: The machine features a proportional backpressure controlling characteristic, ensuring optimal molding conditions and enhancing the overall efficiency of the process.

Model	Unit	50VI-AO	100VI-AO	200VI-AO	300VI-AO	400VI-AO	600VI-AO	800VI-AO	1000VI-AO
Clamping Force	Ton	50	100	200	300	400	600	800	1000
Injection Capacity	cc	500	500	2000	3000	4000	6000	8000	10000
Injection pressure	kgf/cm²	1800	1800	1800	1800	1800	1800	1800	1800
Operation table size	mm	300*300	400*400	550*560	700*700	700*700	850*850	1000*1000	1200*1200
Min. Mold Thickness	mm	50	50	100	100	100	100	150	150
Plunger stroke	mm	300	350	400	400	400	500	500	500
Distance of Thermo-plate	mm	350~450	400~500	500~600	500~600	500~600	600~700	650~800	650~800
Distance of Tie bar	mm	400*140	515*230	640*310	820*395	820*395	970*500	1140*600	1340*800
Die sinking type	2RT-3RT-4RT-Upper Mold-Lower Mold
Max. Operating Pressure	Mpa	20	20	20	20	20	20	20	20
Motor Power	hp	7.5	10	15	15	15	20	20	25
Electric Heating Power	Kw	8.4	10	15.3	24	24	29.75	35	42
Total Power	Kw	16.9	20.5	30.3	39	39	48.75	54	64.5
Gross weight	Ton	5.5	6	7.5	9	10	14.2	17.5	21
Dimension (LWH)	mm	20001500 H2800	24001650 3200	26002000 4000	27502265 4200	27502265 4200	32002500 4350	L3450W2750 H4500	37503050 5000

Rubber Injection Molding Machine for making O ring Seals

Product Features

Rubber Injection Molding Machine for making O ring Seals

Application

Rubber Injection Molding Machine for making O ring Seals

Rubber Injection Molding Machine for making O ring Seals Images
