Vulcanization Machine Compression Moulding Rubber Machine For Rubber Bellow

Name: Vulcanization Machine Compression Moulding Rubber Machine For Rubber Bellow
Brand: JUCHUAN
Price: 16 USD

Wholesale Vulcanization Machine Compression Moulding Rubber Machine For Rubber Bellow from china suppliers

Brand Name : JUCHUAN

Model Number : JC-VF

Certification : SGS CE ISO9001:2015

Place of Origin : Guangdong, China

MOQ : 1set

Price : $16,800.00-38000/sets >=1 sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 Set/Sets per Month injection machine

Delivery Time : 45days

Packaging Details : shrink film packing

Condition : New

Style : VERTICAL

Ejector Stroke(mm) : 250 mm

Ejector Force(kN) : 2000 kN

Theoretical Shot Volume(cm³) : 1000 cm³

Injection Rate (g/s) : 100 g/s

Machine Type : Hydraulic

Injection Weight (g) : 100 g

Screw diameter (mm) : 35 mm

Distance between Tie Bars : 350

Weight (KG) : 8000 kg

Type : Plate Vulcanizing Machine

Open Stroke(mm) : 250 mm

Power (kW) : 24 kW

Warranty : 1 Year

Key Selling Points : Competitive Price

Applicable Industries : Manufacturing Plant

Showroom Location : None

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC

Automatic : yes

After-sales Service Provided : Overseas service center available

Clamp Force : 300ton

Upper Platen Size (mm) : 680*680

Lower Platen Size(mm) : 700*800

Plunger Stroke : 300mm

Heating Plates Distance : 300mm

Max Operating Pressure : 20MPa

Tie Bar Distance : 785x380mm

Vacuum Pump Capacity : 3*2KW

Port : Guangzhou

clamp force : 50-1000

plunger stroke : 200-350

heating plate distance : 200-350

opening mold type : 2RT3RT4RT

total power : 28.4-104

gross weight : 5-20

Contact Now

Vulcanization Machine Compression Moulding Rubber Machine For Rubber Bellow

Advanced Vacuum Compression Molding Machine Technology:

Special insertion device: can be customized according to customer requirements. It is mainly used to lock the second and third layers without separation when the three-layer mold is opened.
There is a separate pressure gauge on the vacuum cover to show the pumping pressure, which is convenient for timely observation of the pumping state.
Mainly applicable to: rubber silicone fittings with complex structure and difficult exhaust.

Vacuum plate vulcanizing machine Features:

using dual motor double pump double oil circuit System design, two working positions are independently controlled and operated independently.
the front top opening and closing moldIn the way, the mold is pushed out from the clamping mechanism, and the mold is opened in front of the machine to facilitate the taking of the product;
the use of high vacuum vacuum cover design, the mold can be in a near-complete vacuum environment, improve mold exhaust performance;
The vacuum cover is completed above the vacuum of -650mmHG within 4 seconds. It is not suitable for forming, and the precision finished product is most suitable;
Reduce the vulcanizing time, improve the products qualified rate, improve the working efficiency of the machine.

Vacuum plate vulcanizing machine application:

O-ring, pressing, keyboard, roller, medical drug plug, shockproof products, black rubber products, daily necessities, gaskets, conductive products, electronic products, etc.
Do not apply to the production of long and large insulator products or other products. When the rubber injection machine is opened, the opening is upward, which is suitable for lifting and removing the product by driving.

Main Technical Parameters:

Model	Unit	300VF
Clamping Force	Ton	300
Upper Platen Size	mm	680*680
Lower Platen Size	mm	700*800
Plunger stroke	mm	300
Distance of Thermo-plate	mm	300
Distance of Tie bar	mm	785*380
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20
Motor Power	hp	102(7.5KW2)
Electric Heating Power	Kw	24*2
Vacuum Pump Power	Kw	3*2
Total Power	Kw	69
Gross weight	Ton	15.45
Dimension	mm	L3360W2970H2850

Other Vacuum Compression Machine Parameters:

Model	Unit	200VF	250VF	300VF	400VF	500VF
Clamping Force	Ton	200	250	300	400	500
Upper Platen Size	mm	510*510	600*600	680*680	800*800	950*950
Lower Platen Size	mm	550*560	650*600	700*800	850*850	1000*1000
Plunger stroke	mm	250	250	300	350	350
Distance of Thermo - plate	mm	250	250	300	350	350
Distance of Tie bar	mm	640*310	745*310	785*380	940*450	1105*475
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20	20
Motor Power	hp	10*2	10*2	10*2	15*2	15
Electric Heating Power	Kw	13.5*2	15.3*2	24*2	26.4*2	36
Vacuum Pump Power	Kw	3	3*2	3*2	3*2	4
Total Power	Kw	45	51.6	69	84.8	49
Gross weight	Ton	7.8	11	15.45	18	14.5
Dimension	mm	293025002350	319029302495	336029702850	365030502900	146036003150

Product show

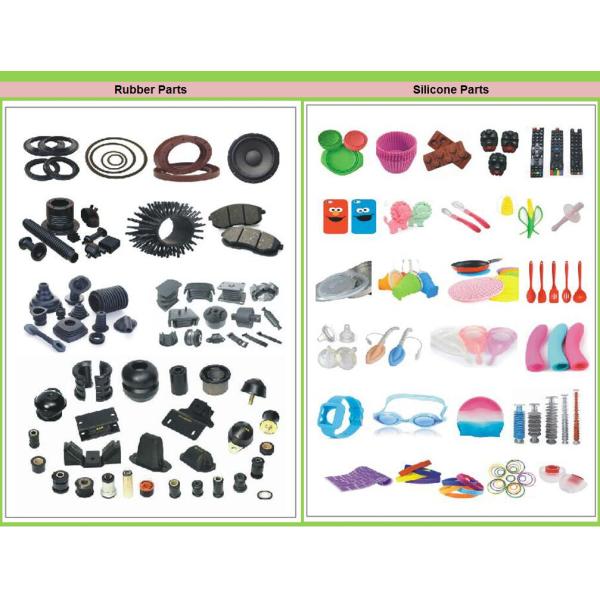

what product our machine can make?

Vulcanization Machine Compression Moulding Rubber Machine For Rubber Bellow

Our Services

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
