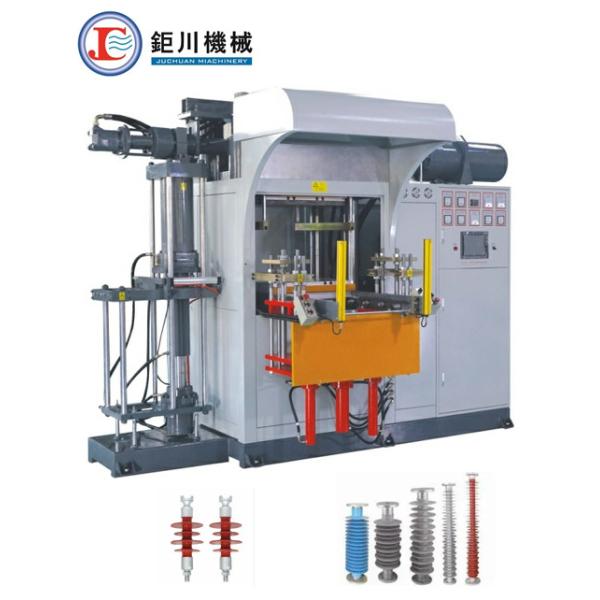

Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine

Guangzhou Juchuan Machinery Co., Ltd.
Contact Now

Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine

Brand Name : Juchuan Machinery

Model Number : JC- HI-FL

Certification : ISO9001:2015

Place of Origin : Guangdong, China

MOQ : 1set

Price : USD32200-45000 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets per Month

Delivery Time : 45 days

Packaging Details : container

Voltage : Adjusted according to the local area

Dimension(L*W*H) : 3400*2400*2600

Weight : 7.3ton

Warranty : 1 Year

Power (kW) : 30.3

Clamping Force : 200ton

Max opening : 500mm

Rated pressure : 20Mpa

After-sales Service Provided : Online support, Video technical support

Port : Nansha Port, China

clamp force : 50-1000

injection volume : 500-4000

injection pressure : 1800

plunger stroke : 300-500

opening mold : 2RT3RT4RT

Gross weight : 5.5-10ton

Contact Now

Factory Price Composite Polymer Insulator Making Machine With Horizontal Injection Machine

Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine
Machine Features:
* Adjustable curing and injection speed with multiple injection capability.
* Anti-damage function of the molding from the misalignment (patented).
* Three stages of pressure and speed of mold opening/closing.
* Mainly for all types of rubber parts.
* Mainly for all types of rubber parts.
Technical Parameters:
Model 200HI-FL 300HI-FL 400HI-FL 500HI-FL
Clamping Force (Ton) 200 300 400 500
Injection Volume (cc) 2000 3000 4000 8000
Injection Pressure (kgf/cm²) 2000 2000 2000 2000
Platen Size (mm) 550*560 700*700 700*700 900*900
Plunger Diameter (mm) Φ360 Φ450 Φ500 Φ560
Min. Mold Thickness (mm) 100 200 200 200
Plunger Stroke (mm) 400 400(600) 400 500
Heating Plates Distance (mm) 500-600 600 600 700
The Bar Distance (mm) 640*310 820*395 820*395 1105*475
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20 20
Motor Power (KW) 11 11 11 11
Heating Power (KW) 15.3 24 24 24.2
Total Power (KW) 26.3 35 35 35.2
Gross Weight (Ton) 7.8 9.5 10.5 28
Machine Size L*W*H (mm) 3400*2400*2600 3500*2600*2700 3500*2600*2700 5100*3400*3000

Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine
Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine

Company Information:

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine
Factory Price Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime.

(The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
