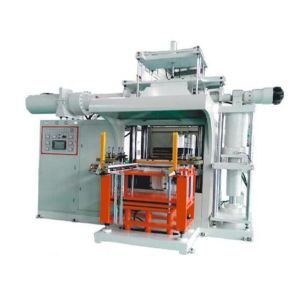

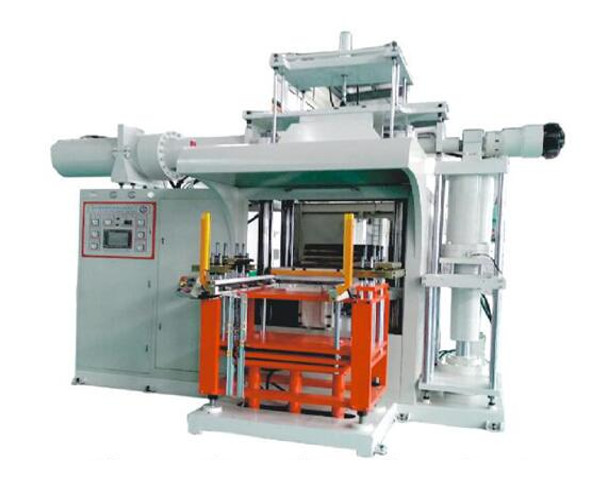

Factory Price & Long Service Life 400ton Horizontal Silicone Injection Molding Machine for making car parts
Machine Features:
* Special two feeding system structure, which has the fuction of making the silicone material and get the best exhaust effect without aging.
* Large-capacity storage barrel design, easy and quickly feeding silicone material.
* This machine is suitable for making silicone products with hardness less than 60 degress, such as silicone insulators, lightening arresters, cable accessories and other silicone products.
Main Technical Parameters:
| MODEL | 200HI-FL | 250HI-FL | 300HI-FL | 400HI-FL | 500HI-FL | 550HI-FL | 600HI-FL | 800HI-FL |
| Clamp Force(Ton) | 200 | 250 | 300 | 400 | 500 | 550 | 600 | 800 |
| Injection Volume(cc) | 2000 | 2500 | 3000 | 4000 | 16000 | 10000 (16000) | 6000 | 8000 |
| Injection Pressure(kgf/cm2) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Platen Size(mm) | 550*560 | 600*700 | 700*700 | 700*700 | 900*1100 | 900*1100 | 850*850 | 1000*1000 |
| Plunger Diameter(mm) | Φ360 | Φ400 | Φ450 | Φ500 | Φ560 | Customized | Customized | Customized |
| Min. Mold Thickness(mm) | 100 | 100 | 200 | 200 | 110 | 260 | 200 | 250 |
| Plunger Stroke(mm) | 500 | 500 | 400(600) | 400 | 700 | 700 | 500 | 500 |
| Heating Plates Distance(mm) | 600 | 600 | 600 | 600 | 800 | 960 | 700 | 750 |
| Tie Bar Distance(mm) | 640*310 | 705*400 | 820*395 | 820*395 | 1105*475 | 850*640 | 970*500 | 1240*590 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure(MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power(KW) | 11 | 11 | 11 | 11 | 11 | 15 | 15 | 15 |
| Heating Power(KW) | 15.3 | 18 | 24 | 24 | 26.4 | 45 | 29.75 | 35 |
| Total Power(KW) | 26.3 | 29 | 35 | 35 | 37.4 | 60 | 44.75 | 50 |
| Gross Weight(Ton) | 7.3 | 8 | 9.5 | 10.5 | 30 | 25 | 14.5 | 18.5 |
| Machine Size L*W*H(mm) | 3400*2400*2600 | 3400*2500*2650 | 3500*2600*2700 | 3500*2600*2700 | 4810*3800*3200 | 5200*2600*3500 | 3800*2800*2800 | 4000*3050*2900 |
Applications:
Company Information: * Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
